SXmini MQ Class Mod

Discover in this video the MQ Class mod by SXmini, equipped with NENV anti-dry hit technology for the ultimate experience!

After the SL Class, SXmini comes back with a more compact version of its mod: the MQ Class, supplied by an 18650 single battery (not included).

The YiHi SX370J chipset gives its seat to the YiHi SX416J with the anti-dry-hit NENV technology.

The MQ Class mod gives access to different setting modes with a manual adjustment of the power up to 60W.

This electronic mod can also hold your RBA equipment thanks to a temperature control mode.

Its standard 510 pin allows you to connect any clearomizer or atomizer with a maximal diameter of 24mm.

SXmini's MQ Class mod with Umbrella Mods' 22mm VII clearomizer

A compact mod in aluminum

SXmini offers an electronic mod with a rectangular format measuring only 76 x 36.7 x 24mm, for a 77g weight.

The main side of the MQ Class mod from top to bottom:

• 1 Fire button
• 1 0.69" screen
• 2 setting buttons

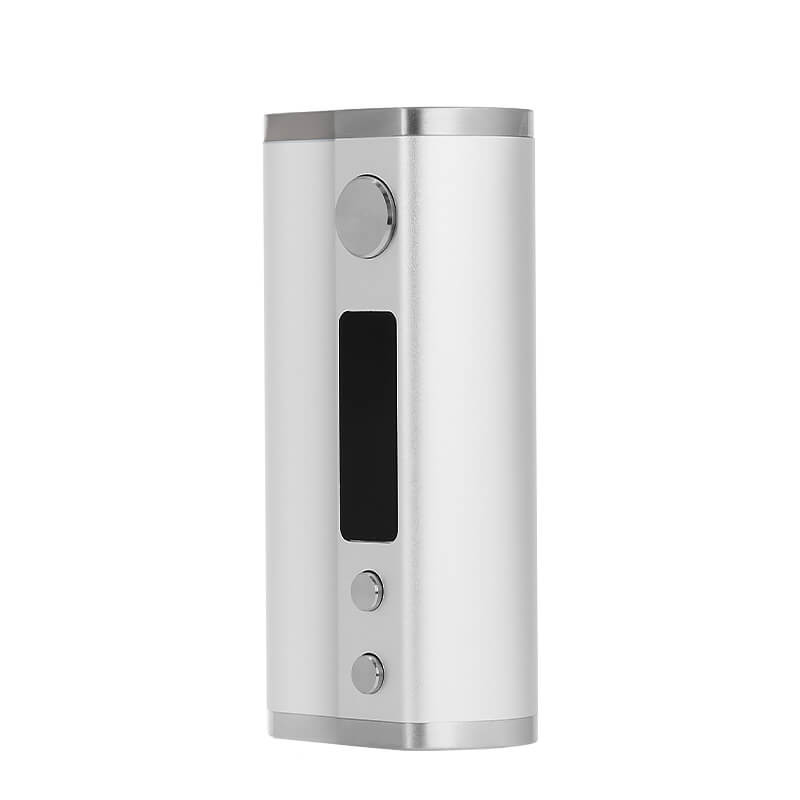

SXmini's MQ Class mod

How does the MQ Class mod work?

Push the Fire button five times to access the main menu of the MQ Class mod.

Select the menu through the screen and the top and bottom buttons:

• Wattage mode: add the power up to 60W
• Temp mode (SS316L/Ni200/TCR): set the temperature according to the coil wire used in your atomizer
• VT Coil mode: this mode is only compatible with the VT Coils, it integrates an anti-dry-hit protection combined with the power setting

Tip: Push the fire button three times to lock the equipment.

The screen of SXmini's MQ Class mod

A capacity in 18650 single battery

Your MQ Class mod requires an 18650 battery (not included).

When you receive your equipment, get an 18650 battery and insert it into the dedicated compartment.

For this, unscrew the cap located under the mod and look for the polarity directions (positive on the back of the compartment).

The 18650 single battery compartment of SXmini's MQ Class mod

If you don't have a charged battery, connect it to a USB-C cable included under the mod.

To extend the lifespan of your batteries, we recommend using an external charger to charge your battery.

The USB-C port of SXmini's MQ Class mod

Box contents

• 1 60W MQ Class mod
• 1 USB-C cable
• 1 user guide

The MQ Class mod is made by SXmini. It is sold without batteries.

Box contents of SXmini's MQ Class mod
