Vaporesso Gen Max Kit

Découvrez en vidéo votre nouveau kit complet pour un tirage DL, à personnaliser à travers trois types d'animation !

Vaporesso offers a kit composed of a 220W Gen Max mod and a iTank T sub-ohm clearomizer.

Meant for enthusiasts of DL and RDL draw, this electronic cigarette has an 18650 dual battery compartment.

The iTank T clearomizer is specially made to hold the GTi coils and has a 6ml bulb tank.

Use the circular 0.96" TFT screen to browse in the mod menu and select the functioning mode that suits you.

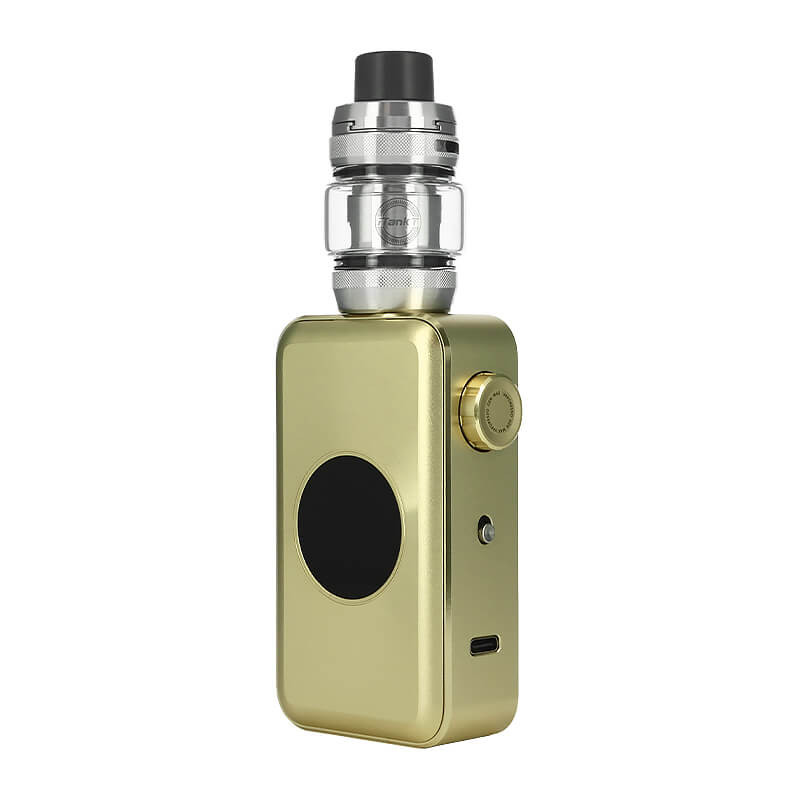

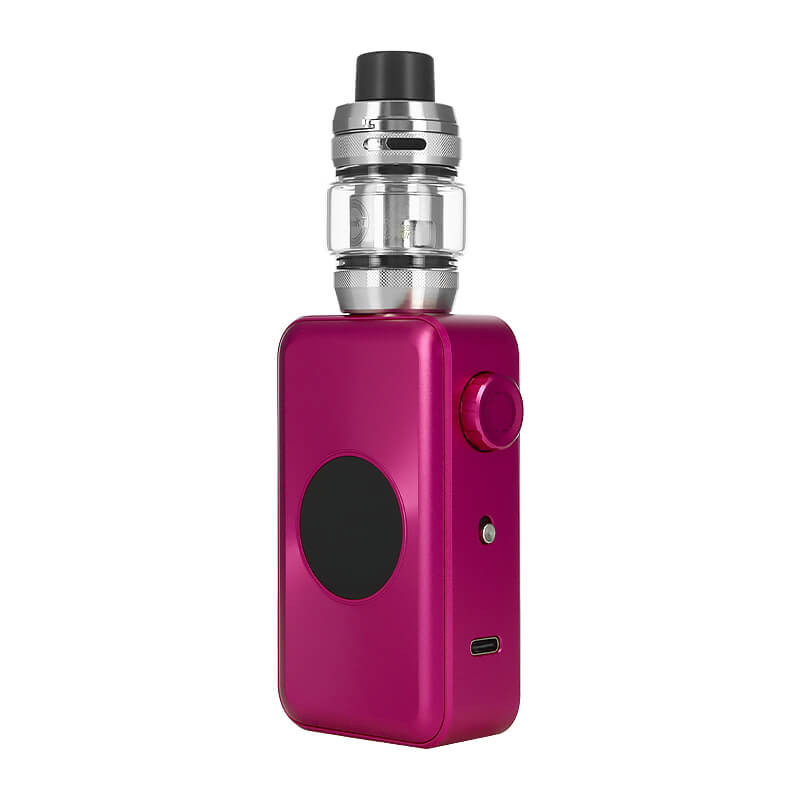

Vaporesso's Gen Max kit

A switch button and an ON/OFF switch

Surrounded by two panels, one of which is magnetized, the main front panel of the Gen Max mod is equipped from top to bottom with:

• 1 switch button in the browsing knob
• 1 ON/OFF switch allowing you to lock and unlock your kit
• 1 USB-C port

Opposite the magnetic panel, you'll find the porthole-shaped screen giving you access to several operating modes.

The iTank T clearomizer features a round tank, exchangeable for the straight Pyrex included in the kit box, depending on the look you want for your set-up.

Measuring 141.4x28.5x49.7mm and weighing 198g, the Gen Max kit's rectangular shape ensures optimum handling.

Handling of Vaporesso's Gen Max kit

Choose the setting that suits you

Vaporesso put its Gen Max kit of the performing AXON chipset with different functioning modes to answer the needs of all vapors.

Select the type of settings that suits you through the TFT screen and the setting knob:

• F(t) (default): this mode, specific to Vaporesso, progressively changes the temperature, the heating speed, the range, and the pulse interval according to the coil installed and the power selected
• Pulse: delivers a regular voltage for optimal flavor production
• ECO: manually adjust the power delivered, from 5 to 80W
• VV (Vari-Voltage): manually set the output voltage in volts

You don't like the manual setting? Use the SMART mode and let the AXON chipset automatically adjust the power according to the value of the coil installed in your iTank T clearomizer.

The circular screen of Vaporesso's Gen Max kit

Vaporesso also allows you to customize the screen of your Gen Max kit through three types of colored animations!

Select the theme (Football, UFO, or general) to display a luminous and colored effect on the circular screen.

The screen animations of Vaporesso's Gen Max kit

A supply of 18650 dual batteries for a great capacity

By lifting the magnetic panel, opposite to the screen, you'll free a dual battery compartment.

Get two 18650 batteries (not included) and insert them by respecting the polarity sense indicated on the back of the compartment.

The 18650 dual battery compartment of Vaporesso's Gen Max kit

Vaporesso also has a kit with a USB-C port allowing you to recharge your equipment through the cable included in the box. You'll find the USB-C port below the ON/OFF switch.

Please note that we recommend using an external charger for your batteries in order to preserve their lifespan.

The USB-C port of Vaporesso's Gen Max kit

The iTank T clearomizer

In this kit by Vaporesso, the Gen Max mod is matched with an iTank T clearomizer meant for an airy vape in direct inhaling (DL), or in restrictive direct inhaling (RDL).

Its bulb tank has an e-liquid capacity of 6ml and it can be changed for the 3ml straight Pyrex included in the kit's box.

With an 810 drip tip and a standard  510 pin, the iTank T is specially made to hold the GTi coils of Vaporesso.

iTank Tank clearomizer of Vaporesso's Gen Max kit

The GTi coils

Vaporesso offers the Gen Max kit with two GTi coils in two different values:

• 1 GTi 0.2ohm MESH coil (pre-installed): to be used between 60 and 70W for a very airy draw
• 1 GTi 0.4ohm MESH coil: to be used between 50 and 60W for a slightly more restrictive vape

Follow the steps below to easily change your coil:

1. Unscrew the base of your clearomizer (bottom part)
2. Pull the coil out of the tank
3. Soak a new coil in a few drops of e-liquid
4. Slide it in place of the old one
5. Screw the clearomizer base back on
6. Fill the tank with e-liquid
7. Wait 5 to 10 minutes before vaping, to allow the new coil to prime properly

A leakproof airflow top

Vaporesso has chosen to position the iTank T air intakes on the top of the clearomizer, thus limiting the risk of e-liquid leaks.

Use the airflow ring to release more or less air into the two air intakes, so you can adjust the flow according to your vape habits. The more air you let in, the more airy your draw.

The airflow ring of Vaporesso's Gen Max kit

How to fill the tank?

Once you've made your choice of Pyrex (6ml bulb or 3ml straight), get your e-liquid bottle, then:

1. Push the top cap to the red limit to free the holes
2. Insert the thin tip of your bottle in one of the two holes of the silicon strip
3. Make your e-liquid pour
4. Push the top cap

Wait for some minutes before vaping if you use a new coil.

The filling of iTank T clearomizer on Vaporesso's Gen Max kit

Box contents

• 1 220W Gen Max mod
• 1 6ml iTank T clearomizer (pre-build)
• 1 3ml straight pyrex
• 1 0.4ohm GTi MESH coil
• 1 0.2ohm GTi MESH coil (pre-installed)
• 1 USB-C cable
• 1 bag of spare pieces
• 1 user guide

The Gen Max kit is made by Vaporesso. It is only sold without batteries.

Box contents of Vaporesso's Gen Max kit
