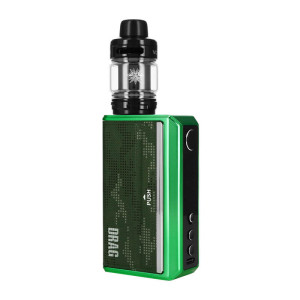

Voopoo Drag 5 Kit

Voopoo combines two innovations to offer you a Drag 5 kit, composed of a 177W electronic mod and a Uforce-X sub-ohm clearomizer.

The mod functions with two 18650 batteries (not included) and offers several setting modes through its 0.29" OLED screen.

The clearomizer has a bulb pyrex of 5.5ml and compatibility with the PnP X coils (from 0.15 to 0.3ohm)

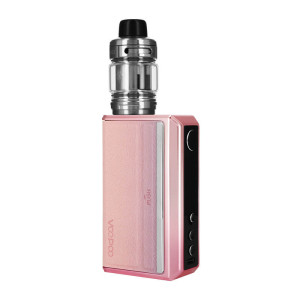

Voopoo's Drag 5 kit

A complete kit for enthusiasts of airy draw

Your Drag 5 kit has an electronic mod equipped with all the necessary for your vape sessions.

Find on the main side from top to bottom:

• The Power button
• The 0.96" OLED screen
• The lock switch
• The setting buttons
• The USB-C port

This mod is matched with a Uforce-X, a clearomizer meant for an airy draw in direct inhaling (DL) with a 5.5ml bulb Pyrex, and a 810 drip tip.

Its dimensions are 142.2 x 55 x 27.4mm for a weight of 222g.

Its structure in zinc alloy has a cap in pleather hiding the 18650 dual battery compartment.

Handling of Voopoo's Drag 5 kit

A versatile and performing chipset: GENE TT 2.0

Voopoo lets you choose between different functioning modes going from manual and automatic power adjustment to an ECO mode limiting the consumption of your batteries.

These modes are accessible through the OLED screen of the podmod by simultaneously pushing two setting buttons.

• SMART mode: automatic power adjustment, from 5 to 80W
• RBA mode: manual power setting, from 5 to 177W
• ECO mode: limits the power to preserve the capacity of your batteries
• TC mode: to use if you exchange the Uforce-X clearomizer for an atomizer (rebuildable)

The OLED screen of Voopoo's Drag 5 kit

Voopoo also has a Drag 5 kit with a switch allowing you to lock: the power, once it is defined, or the mod, to avoid any accidental pushes on the buttons.

The locking switch of Voopoo's Drag 5 kit

A capacity of 18650 dual battery

To make your Drag 5 kit work, take two 18650 batteries (not included).

Free the compartment by lifting the magnetic cap with a pleather coating.

Insert the batteries while respecting the polarity sense indicated on the back of the compartment.

The 18650 dual battery compartment of Voopoo's Drag 5 kit

Are you out of battery and you forgot your spare batteries? Use the cable included in the box of your kit and connect it to the USB-C port. The latter is located below the setting buttons.

The recharging mode has to be as rare as possible. Indeed, we recommend favoring the use of an external charger so you can preserve the lifespan of your batteries.

The USB-C port of Voopoo's Drag 5 kit

The Uforce-X clearomizer

Entirely made by Voopoo for an airy draw in direct inhaling (DL), this sub-ohm clearomizer is made to hold the PnP X coils (from 0.15 to 0.3ohm).

It has a 5.5ml bulb Pyrex fillable by the top and an 810 drip tip.

Its 25.5mm diameter makes it perfectly suited to the Drag 5 mod.

The Uforce-X clearomizer of Voopoo's Drag 5 kit

Your kit has two PnP X coils, each one has a distinct value. For your first use, select the one that suits you among:

• 1 0.2ohm PnP X coil: to use between 40 and 60W
• 1 0.15ohm PnP X coil: to use between 60 and 80W

These two coils are meant for a sub-ohm vape.

Follow the steps below to easily install the coil in the Uforce-X clearomizer:

1. Unscrew the bottom part of the Uforce-X
2. Soak a new coil of some e-liquid drops
3. Insert the latter in its compartment
4. Screw the bottom part back
5. Fill the tank with e-liquid
6. Connect the Uforce-X on the Drag 5 mod
7. Wait for some minutes before vaping to let the new coil correctly primed in e-liquid

A top airflow and top fill clearomizer

Voopoo limits leaks and bets on the performance with its top airflow system.

To adjust the airflow, make the ring located on the top part of the clearomizer pivot. The more you free the two holes, the more you let the air in, and the more your vape will be airy!

The airflow ring of the Uforce-X clearomizer of Voopoo's Drag 5 kit

Voopoo also bets on the easiness and the handiness according to the filling of your tank, through a top filling system! In other words, no need to the clearomizer out of the Drag 5 to fill it with e-liquid.

Follow the steps below to recharge the 5.5ml of bulb Pyrex:

1. Free the filling hole by pulling the top part of the clearomizer, to the 'PUSH' level
2. Insert the thin tip of your bottle into the hole of the silicon strip
3. Pour your e-liquid up to three-quarters
4. Repush the top cap to close it
5. Wait for 5 to 10 minutes before vaping if you use a new coil

Top filling of the Uforce-X clearomizer on Voopoo's Drag 5 kit

Box contents

• 1 177W Drag 5 mod
• 1 5.5ml Uforce-X clearomizer
• 1 0.2ohm PnP X coil
• 1 0.15ohm PnP X coil
• 1 spare 5.5ml bulb pyrex
• 1 bag of spare washers
• 1 USB-C cable
• 1 user guide

The Drag 5 kit is made by Voopoo. It is sold without batteries.

Box contents of Voopoo's Drag 5 kit
